모델 번호
2900
IntelliTrax2
프리미어 프레스 사이드 컬러 컨트롤
견적 요청
- Automates offset color measurement for consistent, accurate results
- Scans color bars as small as 2 mm in height within seconds
- Integrates with MeasureColor and Rutherford for a complete workflow
Overview
Scan Time
Minimum Colorbar Height
Device Geometry
![Callout 700x350]()
![Image 2]()
![Image 3]()
Specifications
Support
Resources
Videos

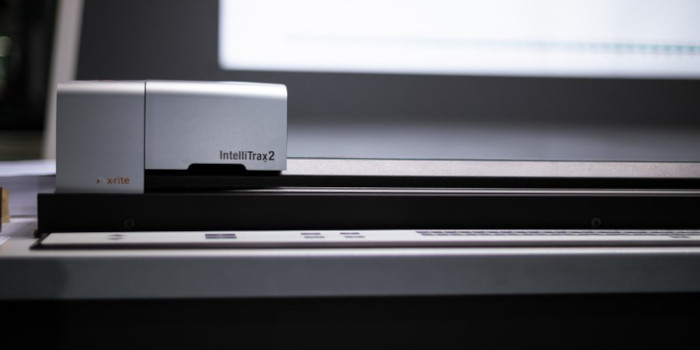

IntelliTrax2 — Integrated and Automated Color Scanning Solution
IntelliTrax2 is an automated color bar scanning solution designed for mid- to large-size commercial and folding carton printers, providing high-speed, accurate color management and quality control. It delivers instant press-side color measurement with actionable data, enabling operators to make real-time adjustments for consistent, on-target color and reduced waste—empowering print professionals to meet demanding quality standards with confidence.
< 10
Seconds
2
mm
45:0
Automated Scanning for Precise Color Control

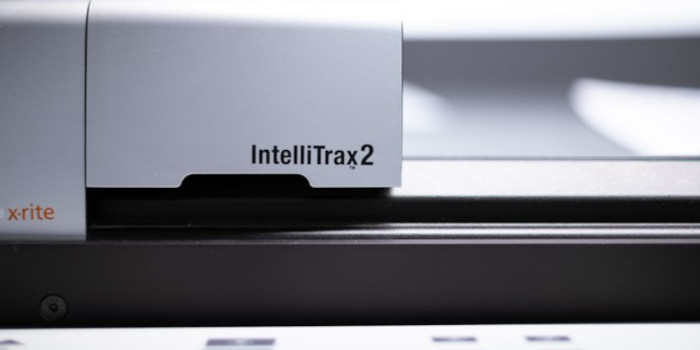

The IntelliTrax2 automatically adjusts its scanning head to locate color bars, speeding up sheet positioning and ensuring precise, consistent measurements every time. Its non-contact technology prevents smudging and scratching, while automated alignment and measurement deliver reliable results and improved pressroom efficiency.
Accelerate Make-Ready with Closed Loop Automation

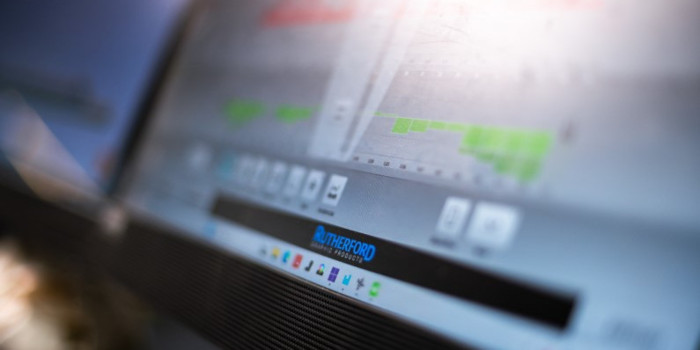

By integrating IntelliTrax2 with Rutherford or another closed loop solution, you can automatically adjust ink keys using real-time spectral press sheet data. The software accelerates setup times, reduces paper waste by the same margin, and minimizes the need for manual intervention—allowing your press operators to focus on what matters most: achieving exceptional print quality, faster.
Boost Color Control with MeasureColor Software

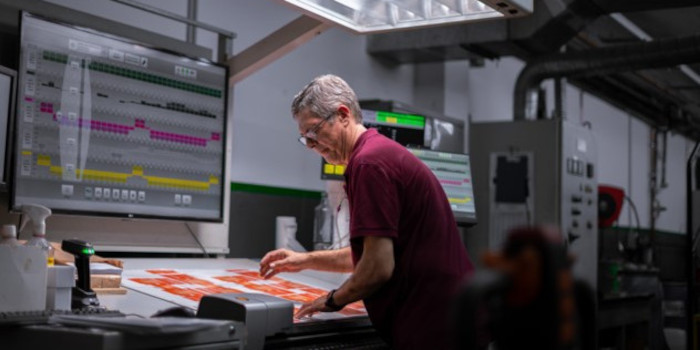

Pair IntelliTrax2 with X-Rite's MeasureColor Software to transform press-side color data into actionable insights. Instantly view real-time Delta E, density, and tonal values for faster, smarter adjustments. MeasureColor delivers robust reporting and trend analysis, helping reduce waste, improve consistency, and achieve precise color control.
Instant Reporting and Scoring
Connects with ColorCert to instantly generate on-screen reports and scores for sharing color performance with brands.
Pantone Connectivity
Direct access to the latest Pantone libraries and PantoneLIVE digital standards ensures accurate and repeatable color.
Best-In-Class Service & Support
With global service centers and 40+ certified service partners, we can provide technical assistance, ISO certification, service, training, and more.
IntelliTrax2
Design/Premedia
Formulation
Production
Quality Control
Specification
Specifications
| BestMatch Feature | Yes |
| Black Background With Sheet Storage | Yes |
| 교정 | Automatic on integrated and covered white reference |
| Closed Loop Support | Yes |
| Color Bar Alignment | Yes |
| Color Differences | CIE ∆E* (1976), ∆E CMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Color Spaces | CIE L*a*b*, CIE L*C*h° |
| 통신 인터페이스 | Ethernet |
| Configuration Options | Head type, track length, aperture, Handheld, foot switch |
| Connectivity | Ethernet |
| Density Range | 0.0 D to 3.0 D |
| Density Standards | Status A, E, I, T, Tx, Ex, Hi-Fi |
| Display Resolution | Minimum: 17” touch-screen monitor with 1280 x 1024 resolution Recommended: 22” touch-screen monitor with 1920 x 1080 resolution |
| Embedded NetProfiler Support | Yes |
| G7 Certification | Yes |
| 습도 | 30 to 85% RH (non-condensing) |
| Illuminants | A, C, D50, D65, D75, F2, F7, F11, D12 |
| 측정 시 이미지 접촉 | No Contact |
| Import/Export Format | CxF3, jtl, cbl, |
| 산업 표준 | ISO 5-4:2009(E), ISO 13655:2009 |
| Ink Wells / Ink Units | Density Version: Up to 8 Spectral Version: Up to 16 |
| 장비간 편차 수준 | 0.3 dE*ab |
| 지원 언어 | Chinese Simplified, Chinese Traditional, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish |
| 광원 | Gas filled tungsten (illuminant type A) and UV LED |
| Measurement Background | Black as specified in ISO 12647-2 and 3 |
| Measurement Conditions | M0, M1, M3 |
| 측정 방식 | 45°/0° ring illumination optics, ISO 5-4:2009(E) |
| Media Thickness | Max 1.0 mm |
| NetProfiler Support | Yes |
| Observers | 2° and 10° |
| 작동 온도 범위 | 10°C to 35°C 50°F to 95°F |
| PantoneLIVE Support | Yes |
| Pass / Fail | Yes |
| Patch Size | Small: 2 mm x 3 mm Medium: 3 mm x 3 mm Polarizer: 3 mm x 3 mm |
| Scan Length | 29" (74cm) 32" (81cm) 40"(102cm) 44” (112cm) 56" (142cm) 65" (165cm) |
| Scanning Area | Color bar within 38mm from the sheet edge |
| Scanning Capability | Yes |
| Scanning Speed | 170 mm / sec |
| Sheet Storage | Yes |
| Short Term Repeatability - Density | On White: ± 0.01 D max. Cyan, Magenta, and Black: ± 0.02 D @ 1.8 D Yellow: S/M: ± 0.02 D @ 2.0 D Polarizer: ± 0.03 D @ 1.8 D |
| 단기 반복성 – 흰색 | 0.15 dE max |
| Single Pass Scan | M0/M1 or M0/M3 or M1/M3 |
| 소프트웨어 개발 키트 | Yes |
| Software Modes | Density /Spectral |
| Spectral Analyzer | DRS spectral engine |
| Spectral Interval | 10 nm |
| 스펙트럼 범위 | 400 nm to 700 nm |
| 스펙트럼 보고 | 400 nm to 700 nm with 10mm interval |
| 보관 온도 범위 | -20° to 50°C -4° to 122°F |
| Supported Devices | IntelliTrax2, eXact |
| Track Sizes | 29" (74cm) 32" (81cm) 40"(102cm) 44” (112cm) 56" (142cm) 65" (165cm) |
| 전압 | 100 - 240VAC, 50/60Hz |
| 품질보증 | 1 year |
| What's Included? | Vacuum pump, Cabling, Power supply, Ethernet cable, Software CD, Manuals, device certificate |
| Windows | Windows® 10 (64 bit), Windows® 11 (64 bit) — Intel Only |
